Command Description

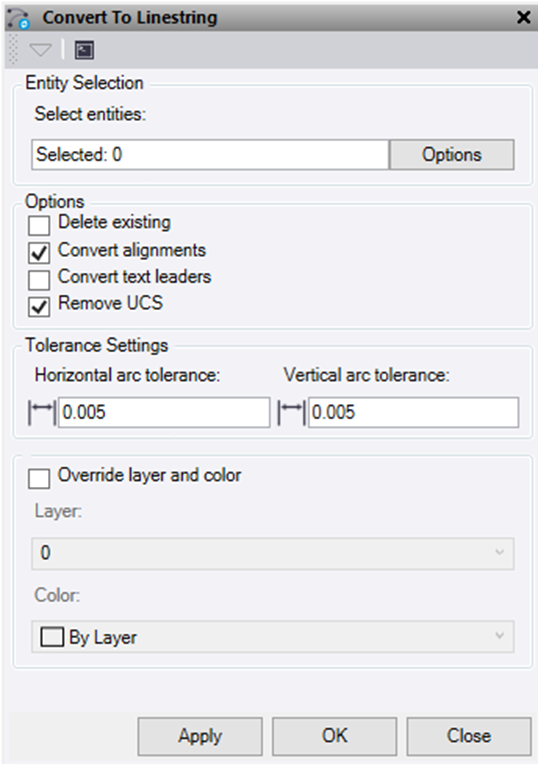

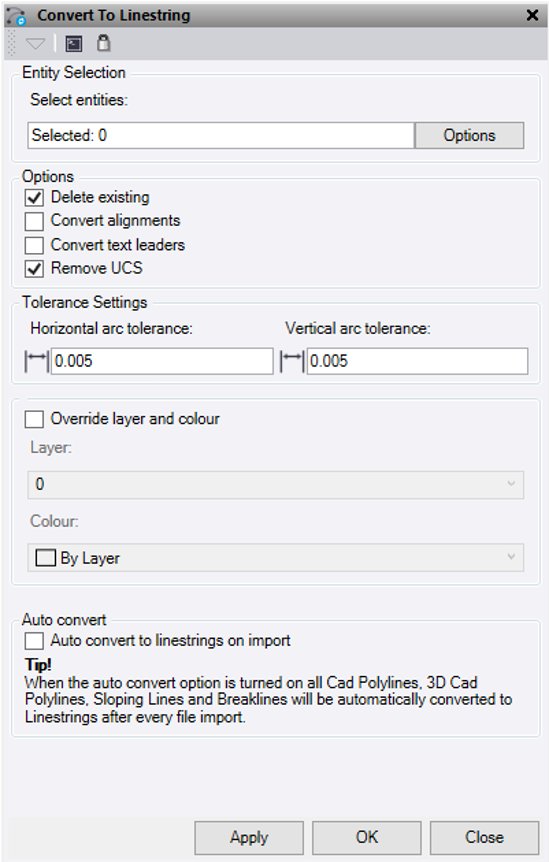

The Convert to Linestring command allows you to convert alignments, polylines, and CAD line objects into Linestring objects. Additionally, able to remove UCS (User Defined Coordinate Systems) from imported CAD objects or from objects created using the Cutting Plane View in TBC.
- Click in the Entity selection field and then in a graphic view select the data you want to convert. Click Options button for additional selection options.
- Check the Delete existing box to delete the source lines once they have been converted into TBC linestrings. Any lines not converted will be left.
- Check the Convert alignment box to convert any selected alignments to linestrings. Note: that Arcs, vertical arcs, and symmetrical vertical curves in the source alignment can be matched to a linestring, however spirals and asymmetrical vertical curves do not match with linestring object properties and require chording to approximate. Similarly, linestrings do not have a Chainage or Chainage Equation or Superelevation property so those elements of an alignment will be lost on conversion.
- Check the Convert text leaders box to convert any text leader line selected to a linestring.
-
Remove UCS: Remove UCS (User Defined Coordinate System) from imported CAD linework and TBC linestrings created in a cutting plane.
-
Horizontal arc tolerance: This is the horizontal chord to arc tolerance used when converting UCS data and linearising alignment segments that do not match linestring object properties.
-
Vertical arc Tolerance: This is the vertical chord to arc tolerance used when converting UCS data and linearising alignment segments that do not match linestring object properties.
-
Override layer and colour:
- Layer – Select or create a new layer for the linestrings to be created on.
- Color – Select a colour for the new linestrings.
- Do either of the following:
- Click Apply to apply the changes and keep the Convert to Linestring command pane open.
- Click OK to apply the changes and close the Convert to Linestring command pane.
