Command Description

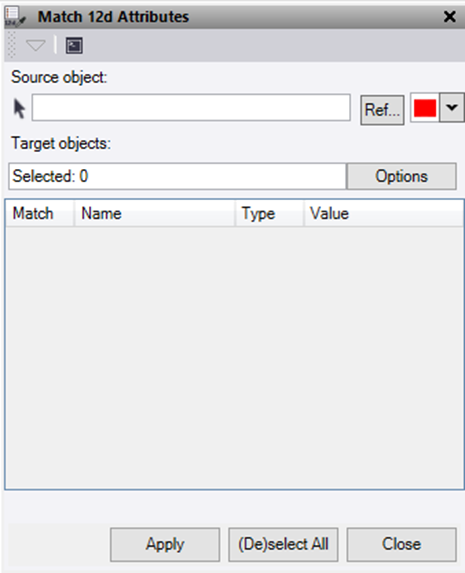

The Match 12d Attributes command allows you to select a source object containing 12d attributes and match (copy) them to target objects.
- Click in the Source object Selection field and then in a graphic view select the object to copy 12d attributes from. Option to change the selection highlight colour for lines and to select an object from Reference files.
- Click in the Target objects field and then in a graphic view select the data you want to match the 12d attributes onto. Click Options button for additional selection options.
- You can de-select any of the specific 12d attributes you do not want to match in the table.
Note the following when matching 12d attributes:
| If the target object... | Results: |
| Includes existing 12d attributes. | The selected source object attributes replace the target object attributes completely. |
- Click Apply to replace the 12d attributes on the target objects.
- Click Close to end and close the Match 12d Attributes command pane.
