Command Description

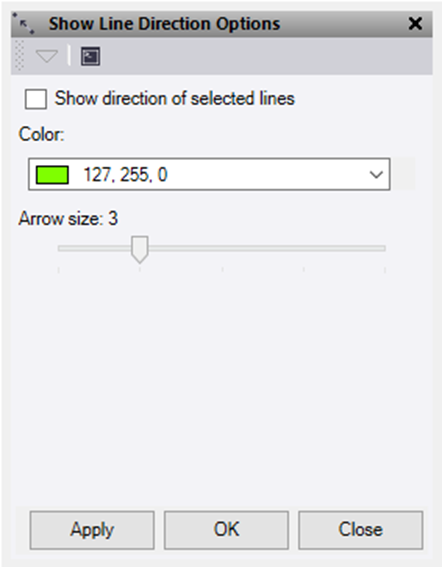

The Show Line Direction Options command shows visual indication (plan and 3D view) of direction of any lines that are selected. It does not require a command to be open to operate. The command is used to turn on/off, set colour and size of direction arrows.
- Check the Show direction of selected lines to enable the direction arrows. This persists within the TBC project until turned off again.
- Pick a Colour for the direction arrows to display in.
- Use the slide to adjust the Arrow size of the direction arrows.
- Do either of the following:
- Click Apply to apply the changes and keep the Show Line Direction Options command pane open.
- Click OK to apply the changes and close the Show Line Direction Options command pane.
