When using point clouds there is a setting to use more memory on your machine than the default which may help with editing and processing datasets, particularly if they have a lot of scan stations.



By default this is set to 8GB, this can be increased to half the available ram on your machine.

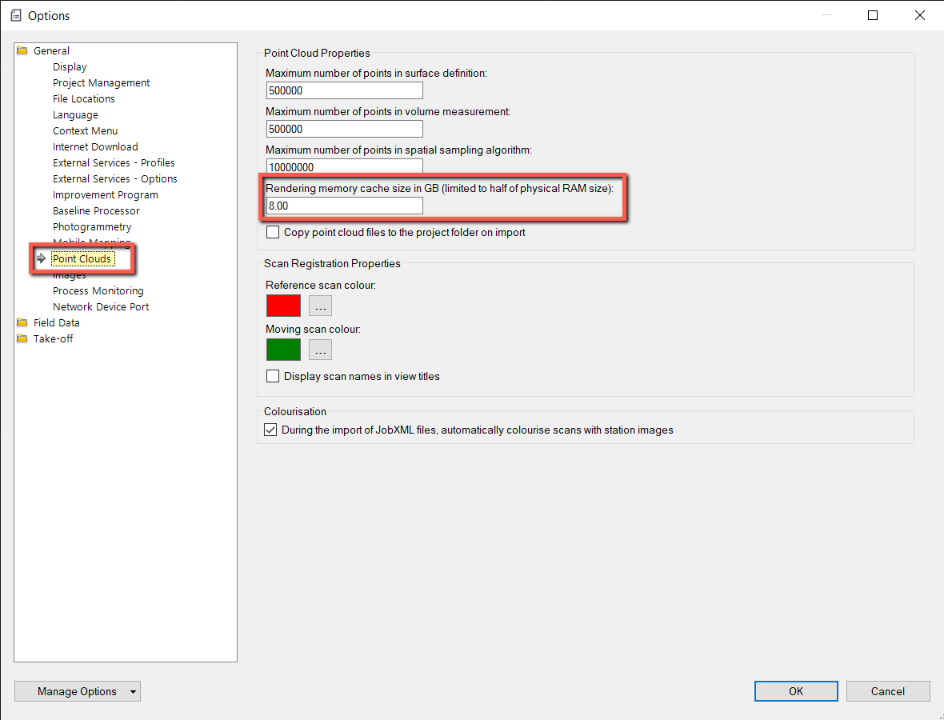

  1. Open the Options in TBC (Page icon on the quick access tollbar or it is in the Support tab).
  2. Go to the Point Clouds group on the left hand side.
  3. In the field under Rendering memory cache size limit GB type in the value for half the ram on your machine.
    Note: If unknown type in something like 100 here and TBC will automatically roll back this value to the available ram on your machine.
