Point Conformance Report

Updated 28 October 2026 00:27

Command Description

The Point Conformance Report command is for reporting as-built points against a design point such as piles, columns, boreholes, bolts etc. The command gives reporting method options such as tolerance mode and allows text detailing the tolerances to be created using the visualize function.

At the top of the command pane there is the ability to load and save a tolerance setting file. Once you have populated the command with the appropriate tolerances and settings for a report you can save it in a file that can be reloaded in the future.

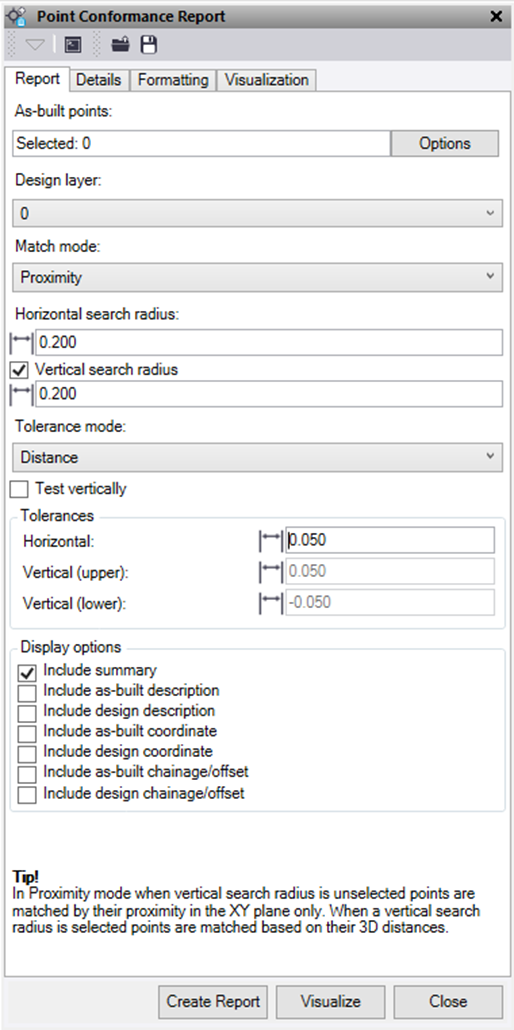

Report tab

As-Built Points	Select the as-built points to use in the report.
Design Layer	Select the layer that contains the design points to report against.
Match mode	Select the method to use to match the design points with the as-built points Proximity – This will use the location of the as-built point and find the closest design point to compare it with. This uses a Horizontal search radius and optional Vertical search radius to confine the point selection. If the vertical search radius is unselected points are matched by their proximity in the XY plane only. When a vertical search radius is selected points are matched based on their 3d distances. Id_Exact – This will match as-built points and design points with the same point ID. Id_Closest – This will match as-built points and design points that have point ID’s which are the named the most similar. eg. P226 and P226_Asbuilt would match.
Tolerance Mode	Select the mode to use to report with. EastingNorthing – This reports the delta relative to its easting and northing difference between points. Distance – This reports the delta relative to a direct 2d distance between points. ChainageOffset – This reports the delta chainage and offset relative to a line.
Test Vertically	Check this to report horizontal and vertical deltas. If unchecked only horizontal is reported.
Tolerances	Enter a tolerance value in metre units appropriate for the mode used.
Create out-of-tolerance selection set	Check this box to create a selection set called “Out-of-tolerance (points)” with any points in the data set that did not pass. If you need to keep the selection set, then rename it before running the command again as it will be written over.
Include summary	Check this box to add the header summary and information from the details tab.
Include as-built description	Check this box to add the information stored in the description 1 & 2 of the as-built point selected.
Include design description	Check this box to add the information stored in the description 1 & 2 of the design point selected.
Include as-built coordinate	Check this box to add the point as-built coordinate to the report.
Include as-built ellipsoid height	Check this box to add the ellipsoidal height of a point to the report. (Only works if with the as-built coordinate enabled)
Include design coordinate	Check this box to add the point design coordinate to the report.
Include as-built chainage/offset	Check this box to add the point as-built chainage & offset to the report. (Only works if you are using the “ChainageOffset” mode)
Include design chainage/offset	Check this box to add the point design chainage & offset to the report. (Only works if you are using the “ChainageOffset” mode)
Include as-built code	Check this box to add the as-built point code to the report.
Include design code	Check this box to add the design point code to the report.

Details tab

Title	Enter a title for the report (for example, the project name).
Custom image file	Select a “png” or “bmp” image file to be added to the top right corner of the report. E.g., company Logo or project image. This only appears if you have a Title filled out.
Description	Enter a description for the report.
Reference number	Enter a survey job reference number.
Author	Enter the name of the report's author.
Custom Header	Enter a user defined heading
Custom Text	Enter a user defined text to go beside the Custom header
Include location image	Check this box to include a screenshot of the current view in the report.

Formatting tab

Colors

Choose the colors to be used in the Excel Report.
Out of tolerance
Missing data
Summary background
Title background
Reset to Defaults

Visualization tab

Create visualization layers	Check if you want conformance information to be displayed on layers in TBC.
Layer prefix	Enter a prefix to add to layer names.
Text Height	Select the height of the text to be displayed on screen
Text Style	Select the text style for the text displayed on screen
Gap	This is the distance in metres that the insertion point of the text will be right/left of the node it is created for.
Rotation	This is the rotation angle of the text that will be drawn.
Draw leader line with gap	Check this to add a leader line when a gap has been used.
Clear visualization layers	Check if you want the layers to be cleared before adding new data.
Include data prefix	Check this to add a text prefix to each data value that is visualised.
Data and prefixes	Check on the required data values you wish to display and adjust the prefixes that are used. Easting Delta Northing Delta Horizontal Delta Chainage Delta Offset Delta Elevation delta
Colors	Choose the colour of the conformance text to be displayed on screen.
