Command Description
The ASPEC Auto-Fill command allows you to automatically fill in geometric attributes for many ASPEC features and enter project wide attribute values.

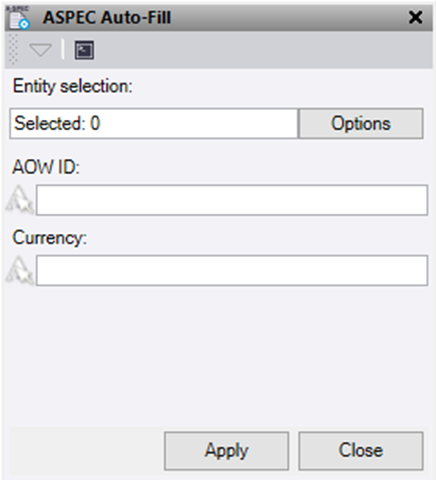

- Click in the Entity selection field and then in a graphic view select the lines, points and polygons. Click on the Options button for additional selection options.
- AOW_ID – Enter a Unique identifier for the area of work relevant to this project. This will then automatically fill these attributes for all selected data.
- Currency – Enter the currency abbreviation used to estimate the costs. E.g. AUD (Australian Dollars)
- After you press Apply any of the selected data that has a Unique_ID attribute required, and its value is blank will be filled with a numeric number for you. Also, many geometric attribute values will be automatically filled in on the data. See list of auto-fill attributes below.
Auto-Filled attributes list:
| SPEC | Feature Name | Auto-Filled Attribute |
| A-SPEC | Varies | Unique_ID |
| Varies | AOW_ID | |
| Varies | Currency |
| SPEC | Feature Name | Auto-Filled Attribute |
| B-SPEC | Conduits_B | En_Con_E En_Con_N St_Con_E St_Con_N Length |
| COMD_Lines | Length_m |
| SPEC | Feature Name | Auto-Filled Attribute |
| D-SPEC | Cond | En_Con_E En_Con_N St_Con_E St_Con_N Length |
| Pipes | DS_IL DS_Pipe_E DS_Pipe_N US_IL US_Pipe_E US_Pipe_N Length | |
| Prop | DS_Pipe_E DS_Pipe_N US_Pipe_E US_Pipe_N Length US_IL DS_IL |
| SPEC | Feature Name | Auto-Filled Attribute |
| O-SPEC | Poles | Easting Northing |
| Fences | Length | |
| Irrig_Ln | Length | |
| Ret_Wall | Length | |
| Lscape | Area |
| SPEC | Feature Name | Auto-Filled Attribute |
| R-SPEC | Dev_Loc | Easting Northing |
| Lighting | Easting Northing | |
| Sign | Easting Northing | |
| Trees | Easting Northing | |
| Barriers | Length | |
| ITS_Line | Length | |
| Kerbs | Length | |
| P_CLine | Length | |
| S_CLine | Seg_length |
| SPEC | Feature Name | Auto-Filled Attribute |
| S-SPEC | Acc_Points | Easting Northing |
| S_Fittings | Easting Northing | |
| S_Pumps | Easting Northing | |
| S_Valves | Easting Northing | |
| Conduits_S | En_Con_E En_Con_N St_Con_E St_Con_N Length | |
| S_Gravity | DS_IL DS_Pipe_E DS_Pipe_N US_IL US_Pipe_E US_Pipe_N Length | |
| Prop_Conn | Prop_Out_E Prop_Out_N Prop_In_E Prop_In_N Length IL | |
| S_Pressure | DIS_IL DIS_Pipe_E DIS_Pipe_N PP_IL PP_Pipe_E PP_Pipe_N Length | |
| S_Elec_Cables | Length |
| SPEC | Feature Name | Auto-Filled Attribute |
| W-SPEC | W_Fitting | Easting Northing |
| Hydrant | Easting Northing | |
| W_Meter | Easting Northing | |
| Pit_Points | Easting Northing | |
| W_Pump | Easting Northing | |
| W_Valve | Easting Northing | |
| Conduits_W | En_Con_E En_Con_N St_Con_E St_Con_N Length | |
| Pressure_Main | From_East From_North To_East To_North Length | |
| Service_Main | Serv_M_E Serv_M_N Serv_P_E Serv_P_N Length | |
| W_Elec_Cables | Length |
