Command Description
The ASPEC Manager command provides an improved workflow to automatically fill in geometric attributes, modify data, check for unfilled attribute values and export completed shape files.

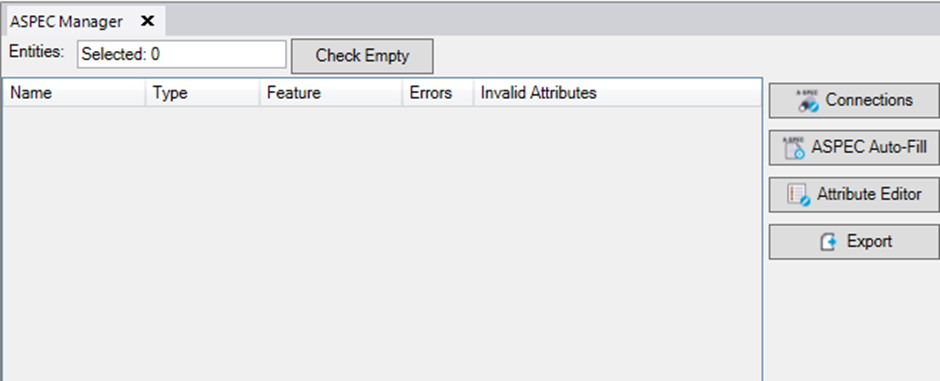

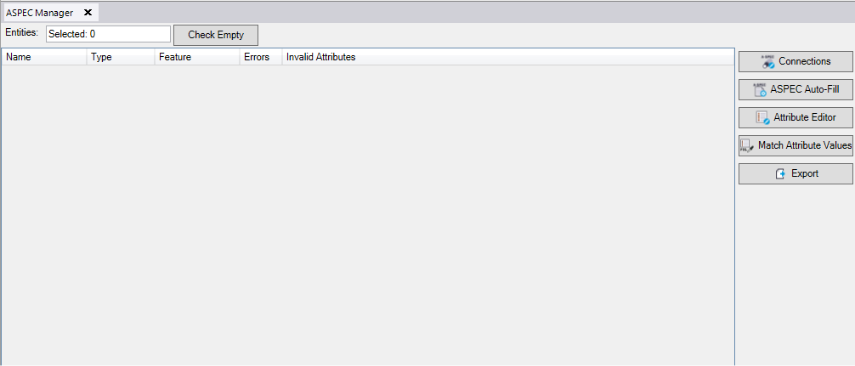

On executing this command it will open in its own plan view and is able to be moved around the screen and positioned in the same way plans can be.
Click in the Entities selection field and then in a graphic view select the lines, points and polygons.
Check Empty:
- Once data is selected press this button to display any features with attributes containing empty values in the table.
- You can continue to work in the plan view without a selection and the table remains live and will update as attributes are filled.
- If you select a row in the table, it will highlight the object in the plan view.
Short cut Buttons:
- Connections – This command is used for processing D-SPEC pipes, Headwalls and S/W-SPEC pumps. See specific command help for further information.
- ASPEC Auto-Fill – This command is used to fill all AOW_ID and Currency attribute values with user defined values. As part of the operation, it will also fill in the Unique_ID attribute value if it is currently blank and many other geometric values which are listed in the specific command help information.
- Attribute Editor – See specific command help for further information.
- Export – Select all the data required to be exported for ASPEC and press the export button to get Shape files for delivery. Note: that if the data exported is 3D, then it will also be this way in the shape files. You may wish to copy the data and remove levels prior to export.
