Process ASPEC Connection

Command Description

The Process ASPEC Connection command allows you to process specific pipe, conduit and Headwall data for D-SPEC and pump stations for W and S_SPEC.

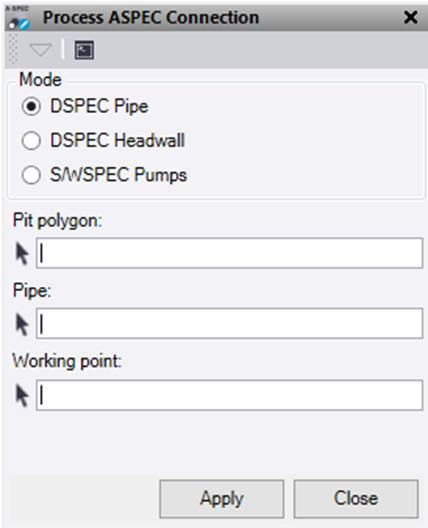

Select the mode required for the data you are processing.

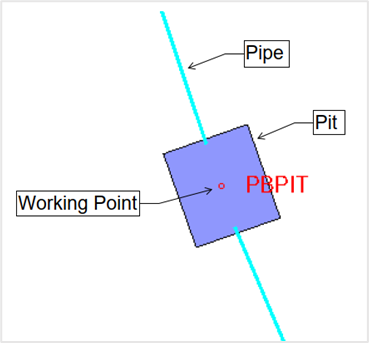

Pit polygon – Select the polygon for the pit feature.
Pipe – Select the pipe string feature.
Working point – Select the working point that is at the centre of the pit structure and has the pit number and depth attribute.

This operation will extend the pipe string to the pit centre and fill in the geometric attributes on the pit and pipe features as listed below.

SPEC	Feature Name	Auto-Filled Attribute	Operation
D-SPEC	Cond	St_Pit_No En_Pit_No En_Con_E En_Con_N St_Con_E St_Con_N Length	Attribute value from working point Attribute value from working point Location of working point Location of working point Location of working point Location of working point Length of Cond string
	Pipes	Up_Pit_No Dn_Pit_No DS_IL DS_Pipe_E DS_Pipe_N US_IL US_Pipe_E US_Pipe_N Length	Attribute value from working point Attribute value from working point Level from end of pipe string Location of working point Location of working point Level from end of pipe string Location of working point Location of working point Length of pipe string
	Cond_Pits	Con_Pit_No Easting Northing Depth	Attribute value from working point Location of working point Location of working point Attribute value from working point
	Pits	Pit_No Easting Northing FSL Depth	Attribute value from working point Location of working point Location of working point Level of working point Attribute value from working point

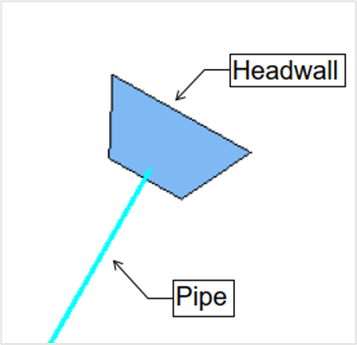

This operation will fill in the Easting and Northing attribute of the headwall feature.

SPEC	Feature Name	Auto-Filled Attribute	Operation
D-SPEC	HEWalls	Easting Northing	Location of end of pipe Location of end of pipe

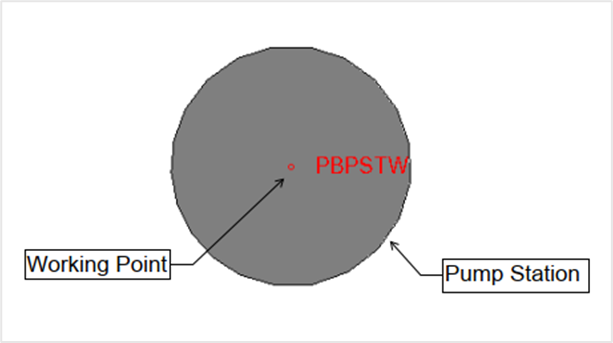

Pump polygon – Select the pump station polygon.
Working point – Select the working point that is at the locator point of the pump structure and at the cover level of pump access point.

This operation will fill in the Easting, Northing and FSL attribute of the pump station feature.

SPEC	Feature Name	Auto-Filled Attribute	Operation
S-SPEC	S_P_Station	Easting Northing FSL	Location of working point Location of working point Level of working point
W-SPEC	W_Pump_Station	Easting Northing FSL	Location of working point Location of working point Level of working point
