When using existing CAD Blocks in TBC hidden issues may arise in how these blocks are displayed.

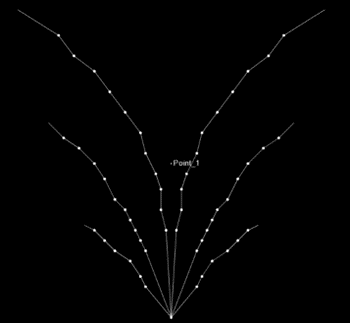

Points Appearing in Block

When creating blocks, ensure that data cleanup has been performed. This includes removing zero length lines and duplicate checks.

For blocks created in CAD:

  1. Select Block and navigate to CAD → Edit → Explode
  2. Select all items in the original block and use Data Prep → Project Clean-up command with the below settings.
  3. Once the area block has been cleaned, recreate the block using Draughting → Create Block.
  4. Export the block as a dwg file to use in the FXL.

Creating Circles in Blocks

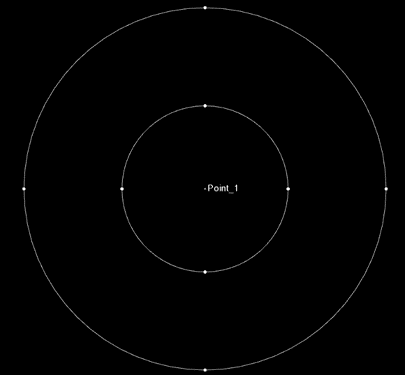

Polylines will create hidden points along the circle/arc.

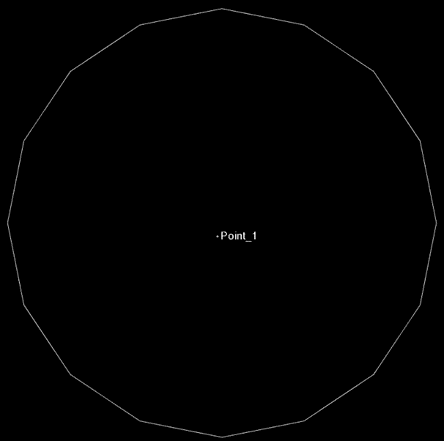

When using circles in TBC, ensure that the block is using a CAD Circle or segmented linestrings.
