Exporting a Site Calibration

The site calibration can be exported in .dc format to be used in Trimble controllers or imported into other TBC projects.

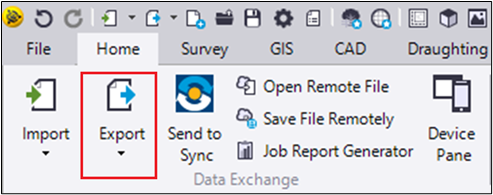

  • Navigate to Home → Data Exchange → Export.
  • Under the Survey tab select Survey Data Collector (DC) exporter.
  • Under File Name click the button to select a file location and name the exported .dc file.
  • If required change the Settings then click Export.

Note: No data needs to be selected to export the calibration file.
